Products
TNE3-E 2.4KW DS □L
Industrial vacuum cleaner - single phase
This series of products are single phase electric operated industrial vacuum cleaner, used for cleaning and recycling dust, materials, processing chips, etc, widely used in processing and manufacturing, petrochemical, aerospace, military, chemical pharmaceuticals, food and other industries. This series of industrial vacuum cleaners are made of stainless steel, the structure of the whole machine is firm and reliable, to ensure continuously stable operation. The product is standard equipped with 1 HEPA filter, which can effectively filter 0.5μm dust. Two high-power double impeller motors can be controlled separately. One motor is often used to suck fine particles and dust, while two motors are often used to suck large particles and dust. Machine adopts the unique one-button self cleaning patent technology to clean HEPA filter, effectively prevent the filter from clogging, improve the working efficiency and extend the service life.
- Description
- Specifications
- Video
-
- Commodity name: Industrial vacuum cleaner - single phase
- Commodity ID: TNE3-E 2.4KW DS □L
This series of products are single phase electric operated industrial vacuum cleaner, used for cleaning and recycling dust, materials, processing chips, etc, widely used in processing and manufacturing, petrochemical, aerospace, military, chemical pharmaceuticals, food and other industries. This series of industrial vacuum cleaners are made of stainless steel, the structure of the whole machine is firm and reliable, to ensure continuously stable operation. The product is standard equipped with 1 HEPA filter, which can effectively filter 0.5μm dust. Two high-power double impeller motors can be controlled separately. One motor is often used to suck fine particles and dust, while two motors are often used to suck large particles and dust. Machine adopts the unique one-button self cleaning patent technology to clean HEPA filter, effectively prevent the filter from clogging, improve the working efficiency and extend the service life.
Product description This series of products are single phase electric operated industrial vacuum cleaner, used for cleaning and recycling dust, materials, processing chips, etc, widely used in processing and manufacturing, petrochemical, aerospace, military, chemical pharmaceuticals, food and other industries.
This series of industrial vacuum cleaners are made of stainless steel, the structure of the whole machine is firm and reliable, to ensure continuously stable operation. The product is standard equipped with 1 HEPA filter, which can effectively filter 0.5μm dust. Two high-power double impeller motors can be controlled separately. One motor is often used to suck fine particles and dust, while two motors are often used to suck large particles and dust. Machine adopts the unique one-button self cleaning patent technology to clean HEPA filter, effectively prevent the filter from clogging, improve the working efficiency and extend the service life.
The product is equipped with triple filter, easy to deal with all kinds of dust. The first level uses the cyclone separator, separation of larger particles to protect high efficiency filter. The second level is based on imported high efficiency filter to filter out fine dust. The third level using deodorant activated carbon filters, in addition to formaldehyde. Three levels filter can completely avoid the secondary pollution. Machine can choose different accessories to achieve the application of different area, such as push suction brush, flat suction nozzle, round brush, dust suction brush, liquid suction brush.
The whole machine has been certified by Germany DEKRA to ensure product quality.

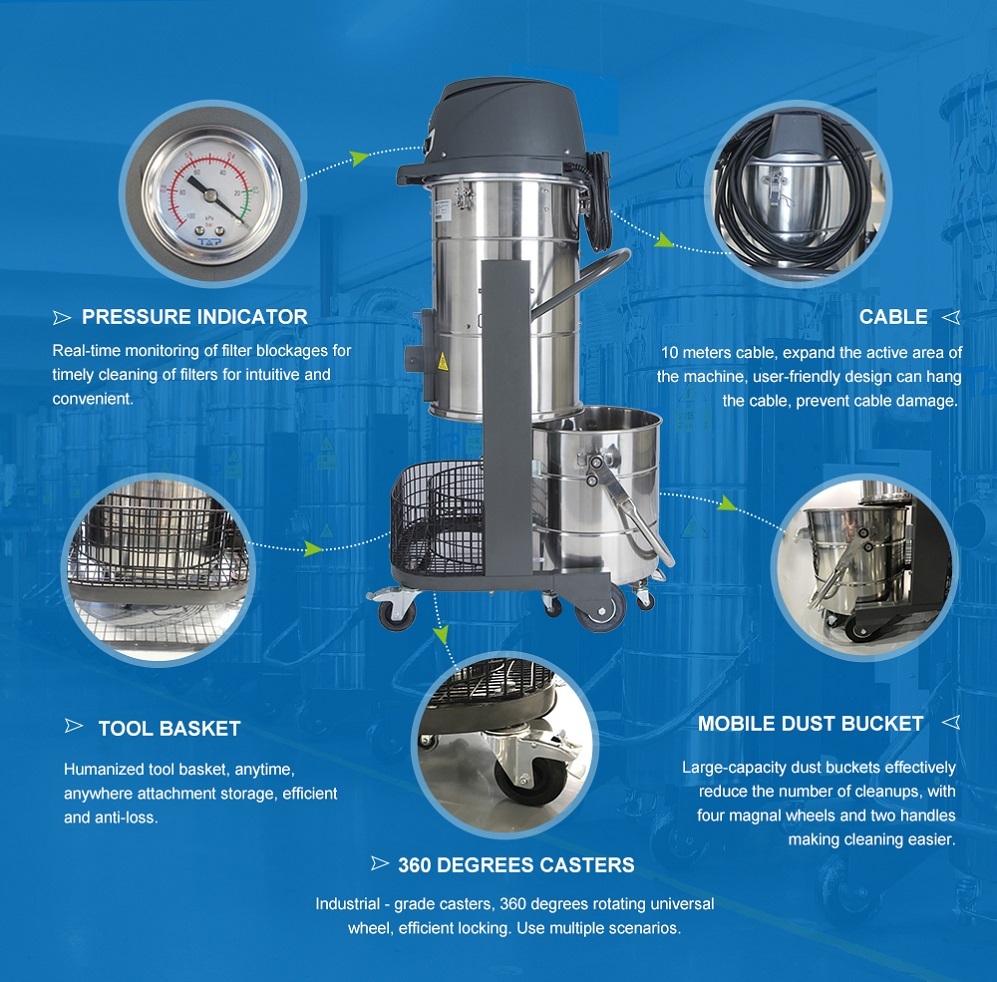

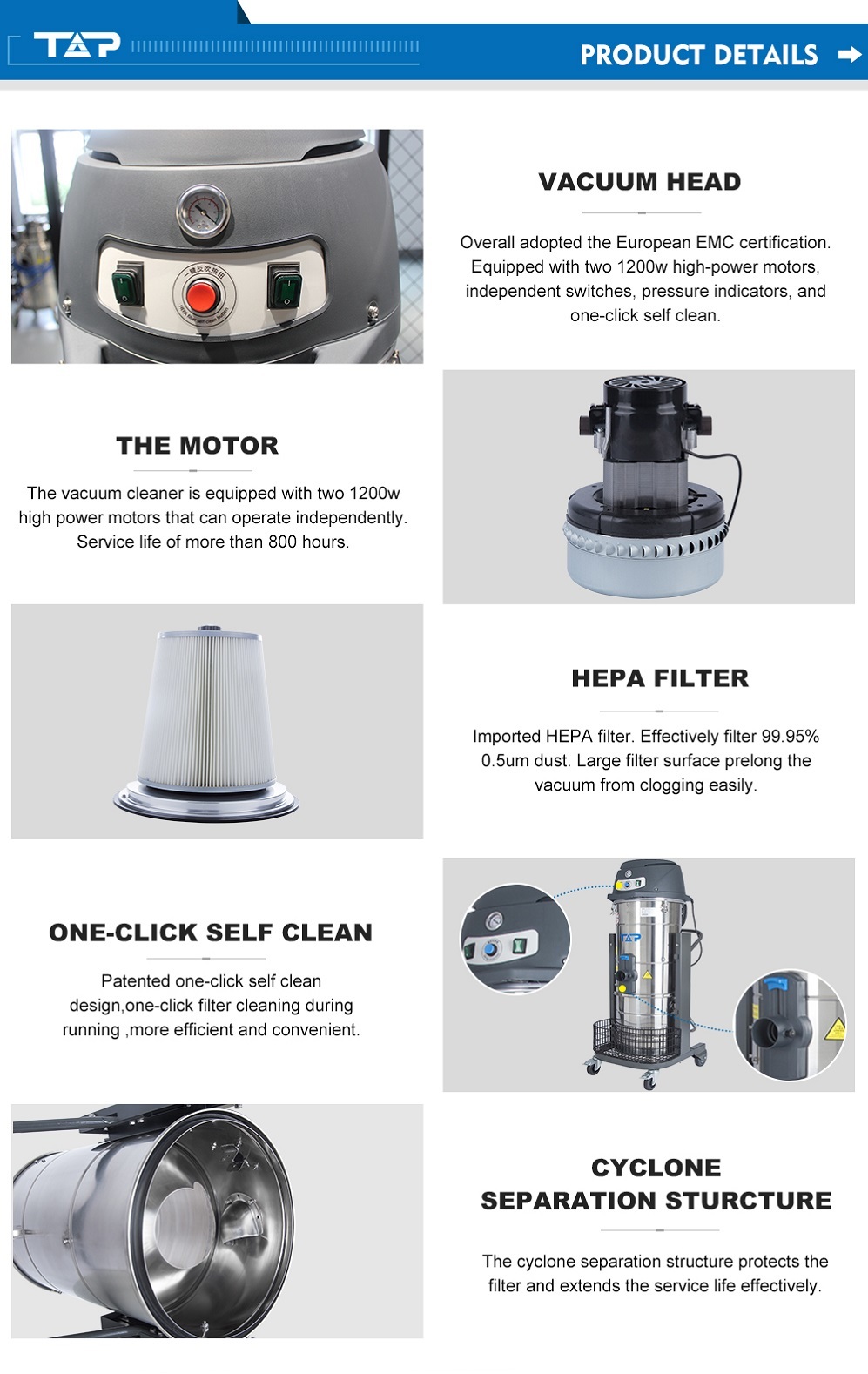

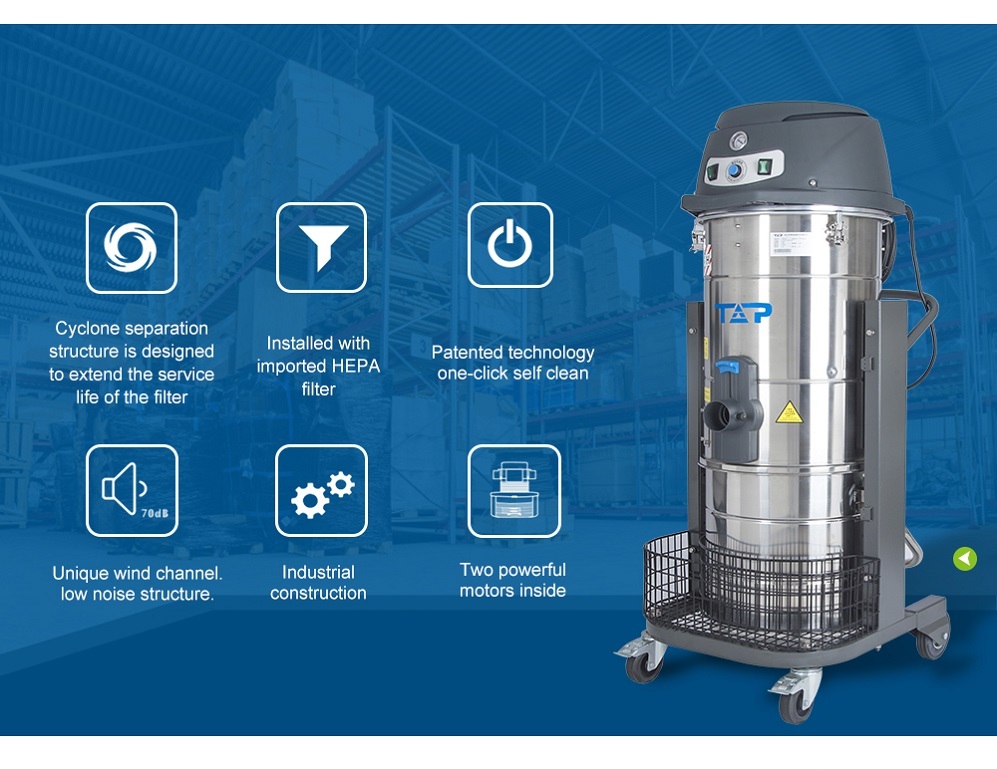

Product Features
1Patented technology, one- button back blow.
2Unique wind channel, low noise structure.
3Strong power with 2 big double impeller blower inside
4Humanized design, portable handle note: Two-hands one in front and one behind can pick up the cover.
5Cyclone separation structure is designed to extend the service life of the filter.
6Installed with imported HEPA filter.
7Detachable container design, quick and easy for cleaning
8Push suction brush, suitable for large area dust cleaning and recycling.
9Tools and accessories are stored in the basket for easy use, loss prevention and well management
10Patented technology, suction port stop valve. Simple and fast operation.
11Complete accessories for different application (optional)
12Heavy duty casters, two universal with brakes plus two fixed type
13Imported high performance hose, meet to RoHS (optional)
14IP65 waterproof switch (with indicator light)
15Humanized design, portable handle, roll up cables for storage
1610m cable with 23m opertion diameter, more efficiency without change socket oftenly -
Order No TNE3-E 2.4KW DS 35L TNE3-E 2.4KW DS 60L Rated power (kW)) 2.4 Rated voltage (M) 220-240 Rated frequency (Hz) 50/60 Insulation grade F Protection degree IP44 Vacuum degree(mmH2O/kPa) 2100/20.6 Max airflow (m3/h) 440 Capacity(L) 35 60 Filter grade H Dust clean one key blow back Entry size( mm) 70 Cable length( m) 10 Plug European standard 16A , 1P/N/PE LxWxH (mm) 670x 550x 1240 670x 550x1430 Noise value (dB) 73±2 Remark:Other accessories are required to be chosen, refer to SPARE PART
-
