TEX3-E 1.2KW DS □L
Explosion-proof vacuum cleaner Single phase electrical operated-Dry type
This series of explosion proof vacuum cleaner are single phase electric operated, suitable for explosive dust hazardous area in Zone 21 and Zone 22, use to clean and recycle of explosive dust (except reactive combustible powder). Widely used in aerospace, military, chemical pharmaceutical, mechanical processing, metal 3D printing, food and other industries.
- Description
- Specifications
- Video
-
- Commodity name: Explosion-proof vacuum cleaner Single phase electrical operated-Dry type
- Commodity ID: TEX3-E 1.2KW DS □L
This series of explosion proof vacuum cleaner are single phase electric operated, suitable for explosive dust hazardous area in Zone 21 and Zone 22, use to clean and recycle of explosive dust (except reactive combustible powder). Widely used in aerospace, military, chemical pharmaceutical, mechanical processing, metal 3D printing, food and other industries.
Product description This series of explosion proof vacuum cleaner are single phase electric operated, suitable for explosive dust hazardous area in Zone 21 and Zone 22, use to clean and recycle of explosive dust (except reactive combustible powder). Widely used in aerospace, military, chemical pharmaceutical, mechanical processing, metal 3D printing, food and other industries.
This series explosion-proof vacuum cleaner is constructed by SUS304 material, with firm and reliable structure, ensuring the stable operation for a long time. The product is equipped with one medium efficient filter bag and four HEPA filters, with minimum efficiency of 99.95% on 0.3 micron . The product is equipped with blower overload thermal protection (when filter is blocked). The product can also be equipped with suction negative pressure monitoring device and filter status indicator light as required. When the filter or hose is blocked, the blower will be shut off automatically and the red indicator will be on to ensure safe and explosion protection.The product has been certified by China national authority to ensure its explosion-proof performance.Product Features
1Imported Ex conductive hose, comply with the regulation of ATEX、 ROHS.
2Explosion-proof controller, with IECEx, ATEX Certification, IP65.
3Detachable container, easy cleaning with fast and high efficiency.
4Anti-static medium filter bag, Large filter surface prevent the vacuum from clogging easily.
5HEPA filter status indicator.
6Tool basket.
7Manual hand shaker for cleaning medium filter.
8HEPA filter can reach 99.95% efficiency on 0.3 microns.
9Grounding clamp cable can be extended to 15m, high elasticity with cold resistant.
10PE15 explosion-proof grounding clamp, correct earthing way can ensure thesurface accumulation charge are well discharge to the ground in order to avoid of explosion.
11Industrial grade explosion proofdrag. Good suction ability, easy and flexible to use. All non-metallic components are made of conductive materials to ensure safe operation (optional).
12Full set of suction accessories for different working condition. (Optional) -
Technical data Order No TEX3-E 1.2KW DS 35L CV TEX3-E 1.2KW DS 50L CV Ex mark Ex tD A21 IP6X T130℃ Degree of protection IP6X IP6X Ambient temperature -20°C.... +40°C -20°C.... +40°C Rated power(kW) 1.2 1.2 Rated voltage(V) 220-240 220-240 Rated frequency(Hz) 50/60 50/60 Rated current(A) 5 5 Capacity for dust (L) 35 50 Vacuum degree(mmH2O/kPa) 2100/20.6 2100/20.6 Air flow(m3/h) 220 220 Filter degree H H Dust cleaning Manual Manual Suction inlet size(mm) 38 38 Noise value (dB) 73 73 Outline dimensions 665×545×1345 665×545×1505 Remark: Polishing head need to be ordered separately.

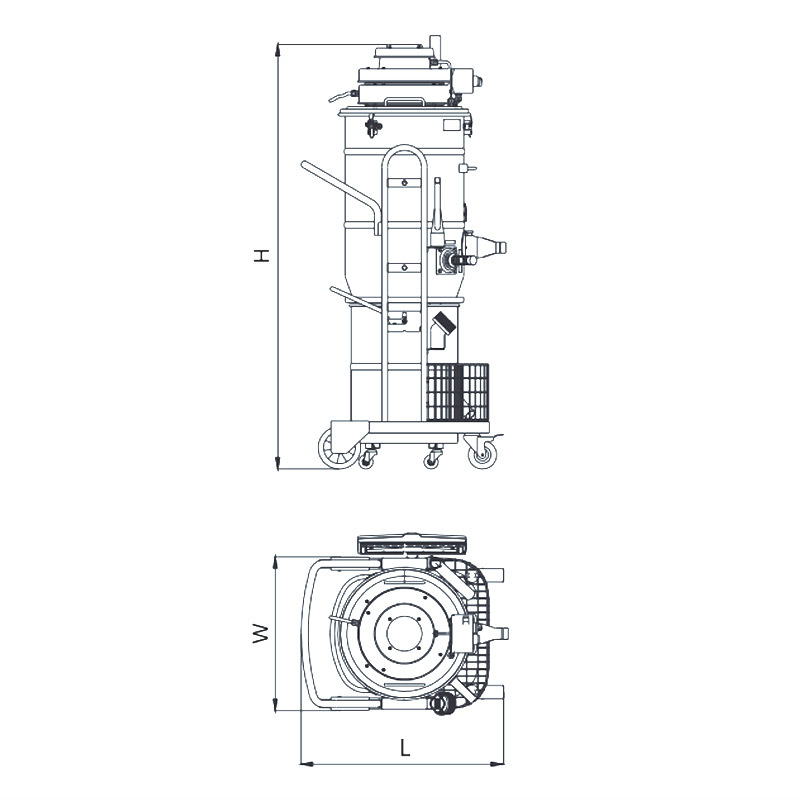

Outline size L*W*H(mm)
-
