TEX3-E 1.2KW DS 46L LI
Explosion-proof vacuum cleaner Single phase electrical operated Compact - Dry type
This series of vacuum cleaner is single phase electric operated, which is suitable for cleaning dry type explosive dust ( Except aluminium/magnesium/titanium/gunpowder etc.) in Zone 21 & Zone 22.It is widely used for petrochemical, aer-ospace, military engineering, chemical pharmaceutical,food and other hazardous area.
- Description
- Specifications
- Video
-
- Commodity name: Explosion-proof vacuum cleaner Single phase electrical operated Compact - Dry type
- Commodity ID: TEX3-E 1.2KW DS 46L LI
This series of vacuum cleaner is single phase electric operated, which is suitable for cleaning dry type explosive dust ( Except aluminium/magnesium/titanium/gunpowder etc.) in Zone 21 & Zone 22.It is widely used for petrochemical, aer-ospace, military engineering, chemical pharmaceutical,food and other hazardous area.
Product description
This series of vacuum cleaner is single phase electric operated, which is suitable for cleaning dry type explosive dust ( Except aluminium/magnesium/titanium/gunpowder etc.) in Zone 21 & Zone 22.It is widely used for petrochemical, aer-ospace, military engineering, chemical pharmaceutical,food and other hazardous area.The overall structure of this series of explosion-proof vacuum cleaners is made of 304 stainless steel, and the whole structure is firm and reliable, ensuring stable operation for a long time. The product comes standard with 1 medium-efficiency filter bag. And 4 HEPA high efficiency filters, can effectively filter 03μm dust up to 99.95%.The product is equipped with a suction negative pressure monitoring device and a filter status indicator. When the filter or suction pipe is blocked, the fan will automatically shut off and the red indicator light will light up to ensure explosion-proof safety.The whole product has been certified by the national authority to ensure the explosion-proof performance of the whole machine.Product Features
1Imported Ex conductive hose,comply wite the regulation of ATEX, RoHS
2Explosion-proof controller, with IECEx,ATEX Certification, IP65
3Anti-static filter bag, has big filter surface, not easily blocked
4HEPA filter status indicator
5Conductive rubber casters, nonmetallic material, surface resistance is less than 1.0x105Ω
6Anti static HEPA filter with minimum efficiency of 99.95% on 0.3microns
7Flexible spiral spring ground cable available from 2m to 15m without any winding
8PEI5 Explosion-proof clamp for safety grounding
9Conductive rubber drag
10Full set of accessories -

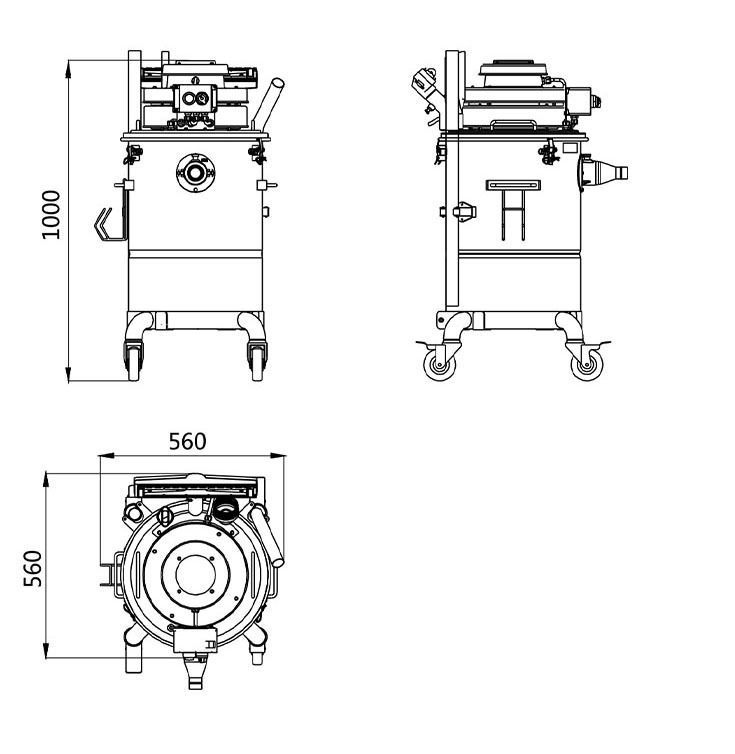

Technical data Order No TEX3-E 1.2KW DS 46L LI Ex mark Ex tD A21 IP6X T130°C Degree of protection IP6X Ambient temperature -202.... +40°C Rated power(kW) 1.2 Rated voltage(V) 220-240V Rated frequency(Hz) 50/60 Rated current(A) 5 Capacity for dust (L) 46 Vacuum degree(mmH2O/kPa) 2100 / 20.6 Air flow(m3/h) 220 Filter degree H Mode of cleaning / Suction inlet specification(mm) 38 Noise value (dB) 75 Outline size L*W*H(mm)
-
