TEX5-E 1.2KW DS □L
Explosion-proof vacuum cleaner Single phase electrical operated - Dry type
This series of explosion proof vacuum cleaner are single phase electric operated, suitable for explosive dust hazardous area in Zone 22, use to clean and recycle of explosive dust (except reactive combustible powder). Widely used in aerospace, military, chemical pharmaceutical, mechanical processing, metal 3D printing and other industries.
- Description
- Specifications
- Video
-
- Commodity name: Explosion-proof vacuum cleaner Single phase electrical operated - Dry type
- Commodity ID: TEX5-E 1.2KW DS □L
This series of explosion proof vacuum cleaner are single phase electric operated, suitable for explosive dust hazardous area in Zone 22, use to clean and recycle of explosive dust (except reactive combustible powder). Widely used in aerospace, military, chemical pharmaceutical, mechanical processing, metal 3D printing and other industries.
Product description This series of explosion proof vacuum cleaner are single phase electric operated, suitable for explosive dust hazardous area in Zone 22, use to clean and recycle of explosive dust (except reactive combustible powder). Widely used in aerospace, military, chemical pharmaceutical, mechanical processing, metal 3D printing and other industries.
This series explosion-proof vacuum cleaner is constructed by SUS304 material, with firm and reliable structure, ensuring the stable operation for a long time. The product is equipped with one medium efficient filter bag and four HEPA filters, with minimum efficiency of 99.95% on 0.3 micron . The product is equipped with blower overload thermal protection (when filter is blocked). The product can also be equipped with suction negative pressure monitoring device and filter status indicator light as required. When the filter or hose is blocked, the blower will be shut off automatically and the red indicator will be on to ensure safe and explosion protectionThe product has been certified by China national authority to ensure its explosion-proof performance.Product Features
1Imported anti-static hose, comply with the regulation of ATEX and RoHS.
2Explosion proof controller with IECEx and ATEX certification Ip65 (standard).
3Detachable container, easy cleaning with fast and high efficiency.
4Anti-static medium filter bag, Large filter surface prevent the vacuum from clogging easily.
5HEPA filter status indicator
6HEPA filter can reach 99.95% efficiency on 0.3 microns.
7Manual hand shaker for cleaning medium filter.
8Tool basket.
9Full set of suction accessories for different working condition. (Optional) -

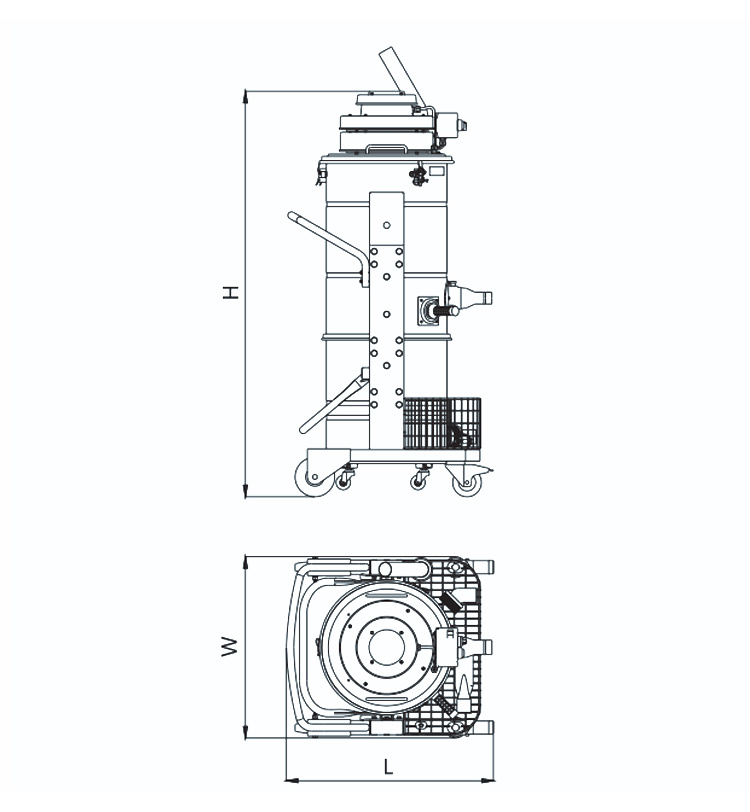

Technical data Item Number TEX5-E 1.2KW DS 35L TEX5-E 1.2KW DS 60L Ex mark Ex tD A22 IP6X T130°C Ex tD A22 IP6X T130°C Protection degree IP6X IP6X Ambient temperature -20℃...+40℃ -20℃...+40℃ Rated power(kW) 1.2 1.2 Rated voltage(V) 220-240V 220-240 Rated frequency(Hz) 50/60 50/60 Rated currents (A)(MAX) 5 5 Capacity (L) 35 60 Vacuum degree(mmH,O/kPa) 2100/20.6 2100/20.6 Max airflow (m3/h) 220 220 Filter degree H H Dust cleaning Manual Manual Suction inlet size(mm) 38 38 Noise value(dB) 73 73 Cable length(m) 15 15 Outline dimensions LxWxH (mm) 670×570×1230 670×570×1415 Remark: Order number + K means machine with filter indicator , Example: TEX5-E 1.2KW DS 35L K. Outline size L*W*H(mm)
-
