TDC4/6 Series

Integrated Dust Collector


Designed for cutting,welding and other local dust and smoke collection and purification.Solution for a variety of application domains.Various specifications of blower and filter medium, can be widely used in laser cutting, welding, polishing, pharmaceutical, food processing, electronics and other industries of dust and smoke purification treatment.

  • Description
  • Specifications
  • Video
    • Commodity name: Integrated Dust Collector
    • Commodity ID: TDC4/6 Series

    Designed for cutting,welding and other local dust and smoke collection and purification.Solution for a variety of application domains.Various specifications of blower and filter medium, can be widely used in laser cutting, welding, polishing, pharmaceutical, food processing, electronics and other industries of dust and smoke purification treatment.

    INTRODUCTION



    TDC4/6 series is designed for cutting, welding and other local dust and smoke capture and purification and solutions for multiple domains.It equipped different type of blowers.A variety of filter media are matched according to different applications. Can be widely used in laser cutting, welding, polishing, pharmaceutical, food processing, electronics and other industries dust and smoke purification treatment.

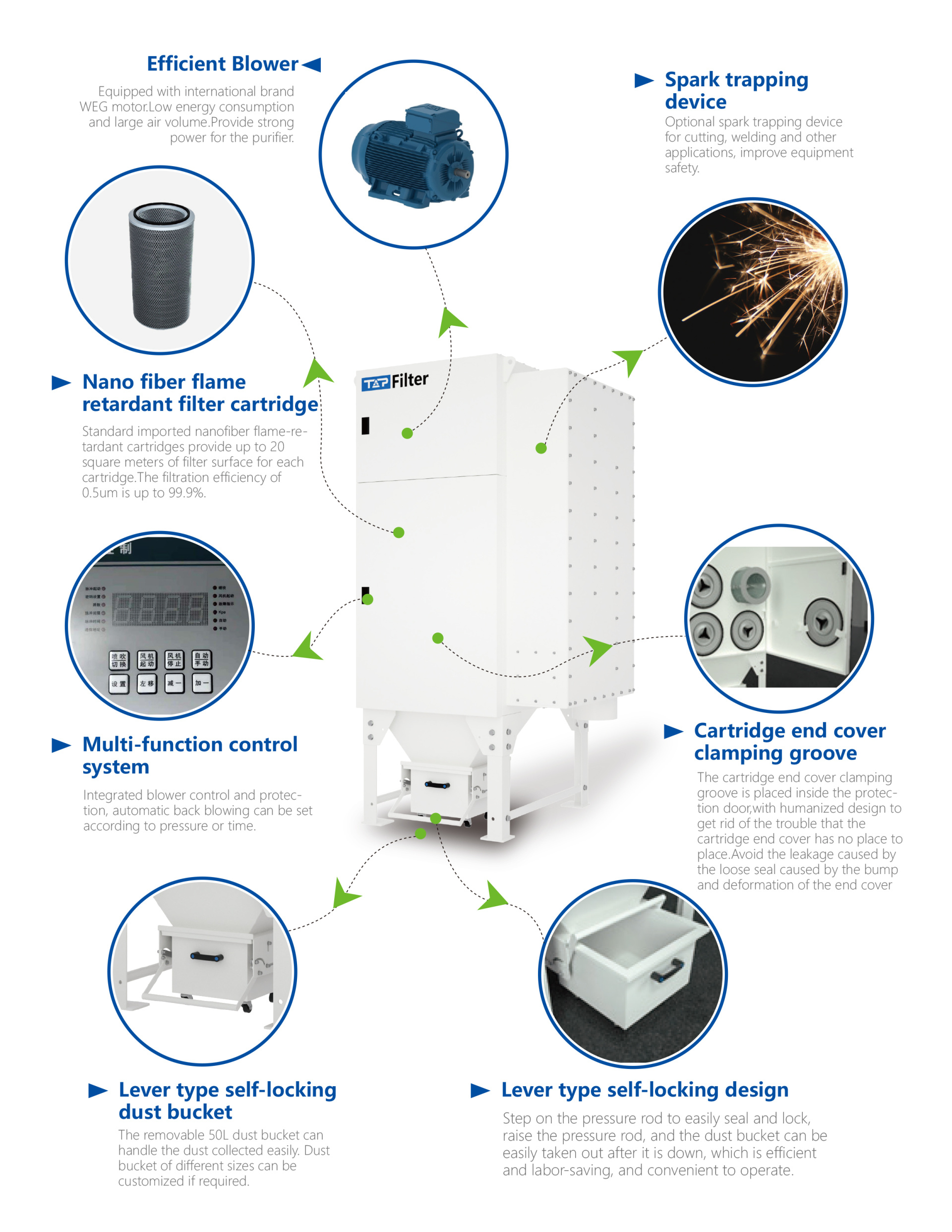

    Built in high energy efficiency blower.Equipped with international brand WEG motor.Low energy consumption and large air volume.Integrated structure, plug and play, easy and fast installation.


    It standard imported nano fiber flame retardant filter cartridge.Single cartridge provides up to 20 square meters of filtration area.Filtration efficiency up to 0.5μm99.9%, easily achieve emission standards.


    Multi-function control system, integrated fan control and protection, automatic back blowing control.It can switch freely between pressure difference or timing dust cleaning function according to use requirement. The control system will clean the filter cartridge online according to the selected method.


    The spark catcher can be added before the air inlet of the equipment.For cutting and welding applications, avoid the spark generated in the work into the dust collector to cause combustion, improve the safety of equipment.


    Equipped with a 50L dust barrel with rollers at the bottom, the pressure-bar self-locking design helps you dispose of the collected dust easily.

    APPLICABLE FIELDS









    PRECISION

    MANUFACTURING

    TRANSPORTATION AGRICULTURAL
    SCI-TECH

    FOOD &

    PHARMACEUTICAL

    MACHINERY
    INDUSTRY

    WORKING PRINCIPLE


    ■ After the industrial fume enters the filter chamber, the dust particles are intercepted on the surface of the filter cylinder, and the clean gas enters the inner cavity of the filter cylinder through the filter material, and is discharged into the room through the clean gas chamber and the blower.



    ■ With the accumulation of dust particles on the surface of the filter material, the pressure difference on both sides of the filter material increases accordingly. The automatic pulse blowing system can automatically open the compressed air to clean the filter cartridge one by one when the pressure difference is set to the high limit, and stop the back blowing when the pressure difference is reduced to the low limit. This process continuously circulates to realize the self-cleaning of the filter cartridge.



    ■ The dust blown down falls into the dust collecting bucket at the bottom of the dust bucket for regular dumping.





    CHARACTERISTIC SUPERIORITY





    APPLICATION PROCESS



  • Technical Data

    Model TDC4-L TDC4-H TDC6-L TDC6-H
    Model Related voltage 380V,3P/N/PE
    Related frequency 50Hz
    Motor power(KW) 4 5.5 5.5 7.5
    Max airflow(m³/h) 4000 5000 5000 7000
    Capacity(L) 50 50 50 50
    Cartridge number(pcs) 4 4 6 6
    Filter area (㎡) 80 80 120 120
    Insulation grade H
    Filter cleaning Compressed air automatic cleaning
    Compressed air 4-5bar oil free and water free compressed air
    Suction port(mm) 250 300 300 350
    Shipping weight(kg) ≤72 ≤75 ≤75 ≤75
    Noise Value(dBA) 700 712 840 855
