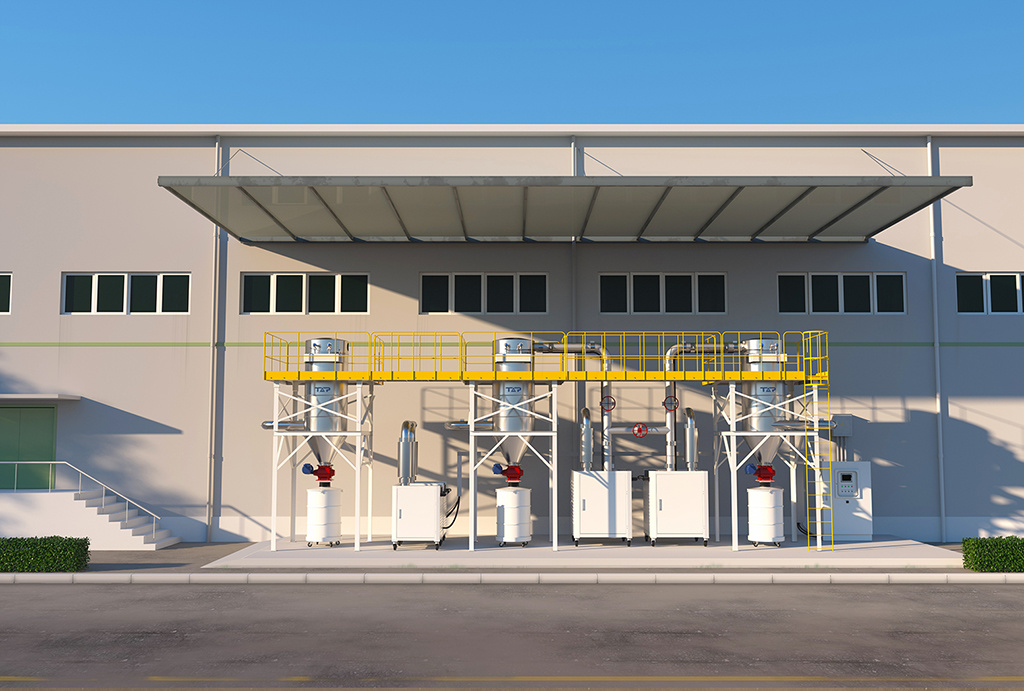

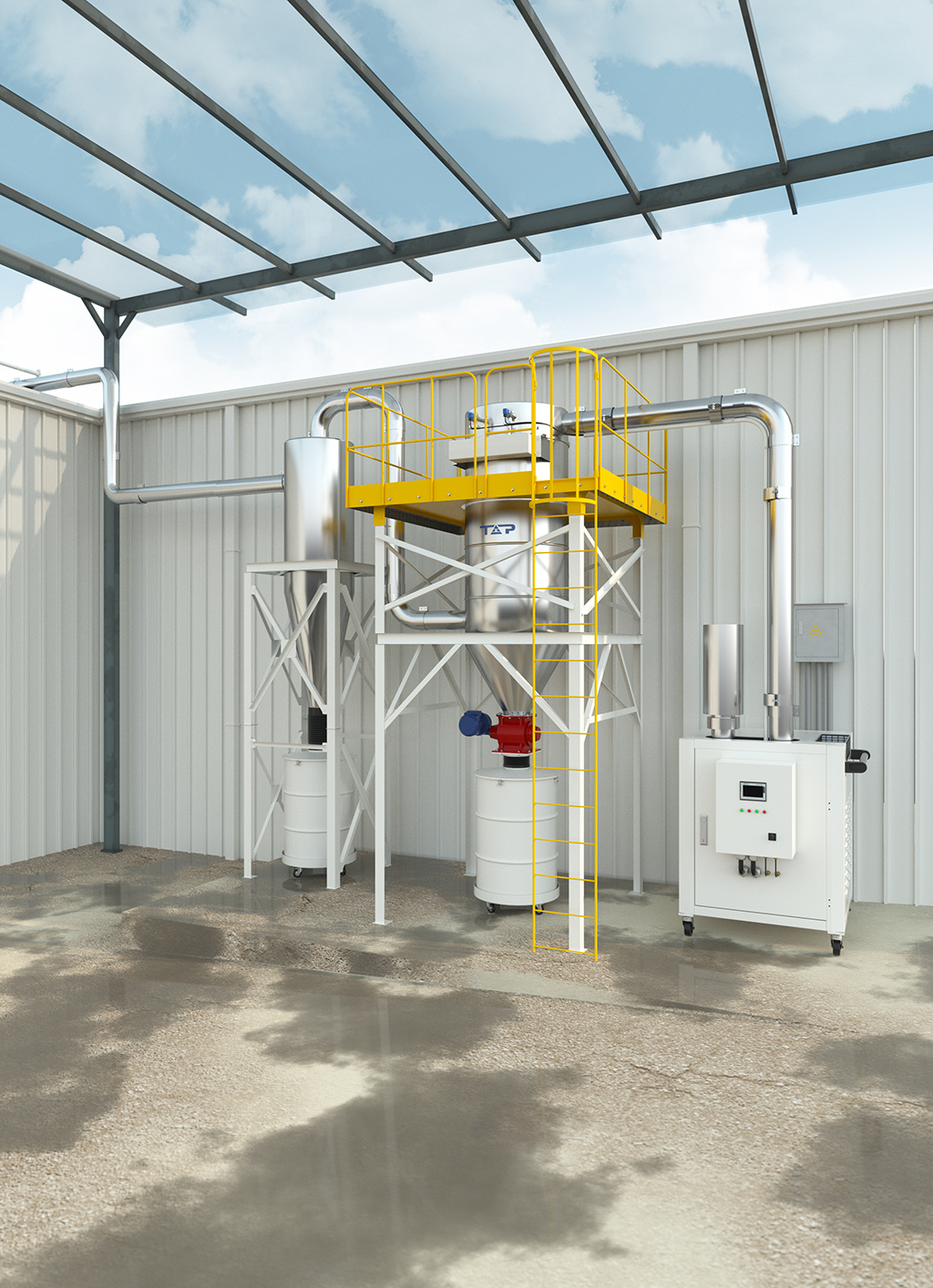

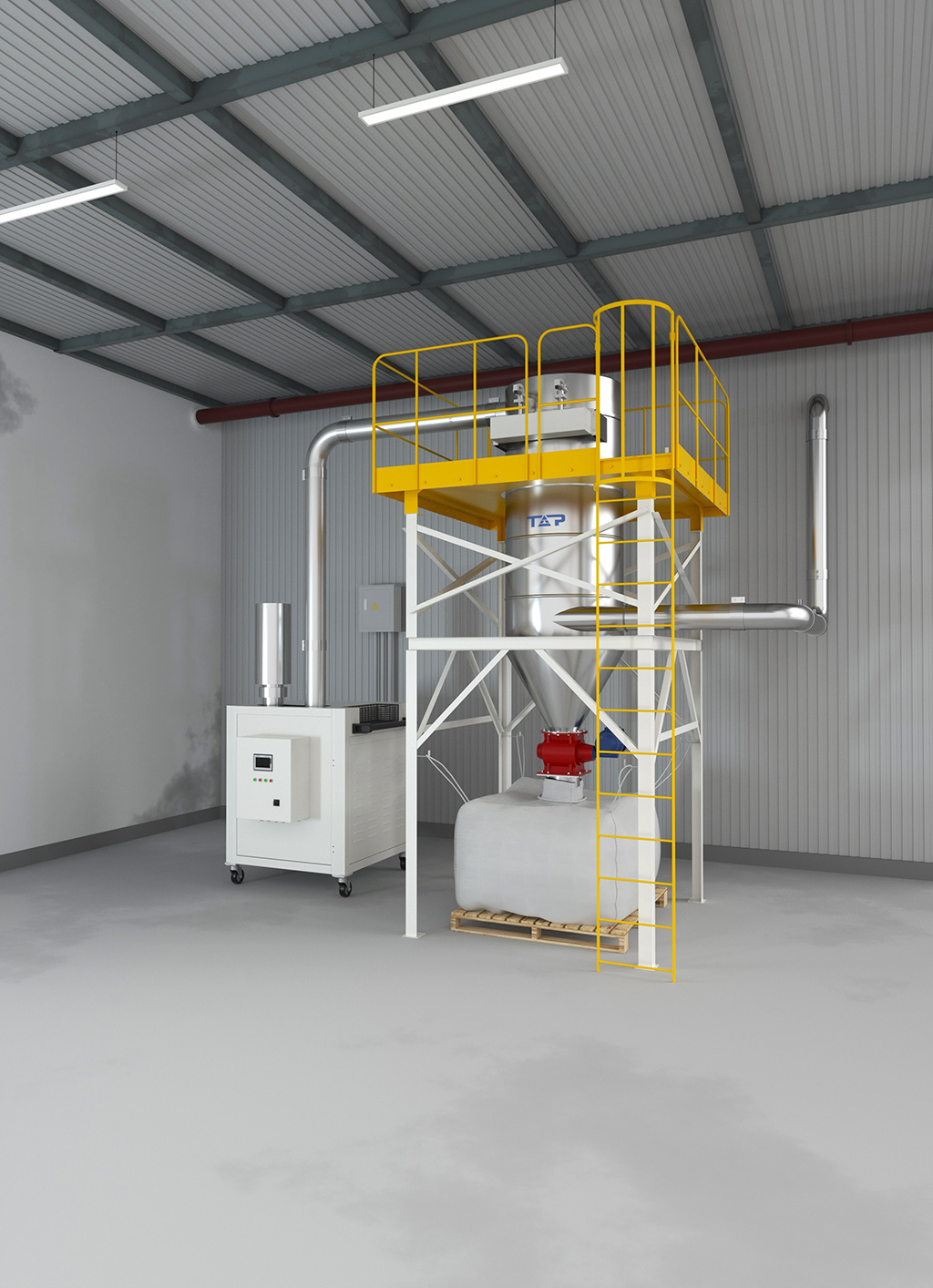

CENTRALIZED HIGH VACUUM DUST SYSTEM


Centralized high Vacuum dust system,Also known as high Vacuum central vacuum system,Its function is to connect a large number of working points in the factory that need dust removal or vacuuming together through the pipeline system and concentrate them into a set of high vacuum dust collector for processing.These processes include vacuum cleaning, material pneumatic conveying separation, small air volume and high vacuum long distance dust collection and separation, etc.

  • Description
  • Specifications
  • Video
    • Commodity name: CENTRALIZED HIGH VACUUM DUST SYSTEM

    Centralized high Vacuum dust system,Also known as high Vacuum central vacuum system,Its function is to connect a large number of working points in the factory that need dust removal or vacuuming together through the pipeline system and concentrate them into a set of high vacuum dust collector for processing.These processes include vacuum cleaning, material pneumatic conveying separation, small air volume and high vacuum long distance dust collection and separation, etc.

    INTRODUCTION

    · Siemens PLC Real-Time Control

    The centralized high-negative-pressure dust collection system is capable of large-scale, multi-workpoint centralized dust removal. Ducts and suction ports can span multiple floors across tens of thousands of square meters. By monitoring the pressure of terminal suction ports and the main pipeline system, the central PLC dynamically adjusts the power system in real time based on the opening/closing status of ports to ensure sufficient negative pressure and airflow at all workpoints.



    · End-of-Pipeline Cleaning Function

    Equipped with a Siemens PLC control system and Siemens touch screen, combined with remote sensors, the system automatically activates the dust collection system based on the opening/closing of terminal suction ports. The blower’s frequency is automatically adjusted according to the number of open/closed suction ports to meet varying airflow demands. The real-time status of all suction ports and key system parameters are displayed on the touch screen for operator monitoring. The system provides alarms for overload, abnormal pressure, and full dust bins.



    · Multiple Dust Collection Modules

    The separated dust can be collected flexibly using various methods such as dust bins of different capacities, discharge valves, and big bag screw conveyors.

    · Explosion-Proof Upgrades
    For explosive dust, explosion-proof measures compliant with national standards can be added, including anti-static filtration, explosion-proof motors, rupture discs, flameless venting, isolation valves, and spark detection systems, ensuring safe collection and handling of explosive dust.

    · Customized Non-Standard Solutions

    We provide non-standard customized solutions tailored to customer needs, along with global service and technical support.
